System Overview

Compute clusters like Roar serve many purposes:

  • number crunching, much bigger and faster than a laptop
  • batch compute jobs, submitted and performed later
  • interactive computing, on the equivalent of a powerful workstation
  • large-scale storage and access of data files

Roar consists of two clusters: Roar Collab, and Roar Restricted. Roar Collab is for general use; Roar Restricted is only for users working with sensitive data requiring extra security provisions.
For details, see the Roar Restricted addendum.

Architecture

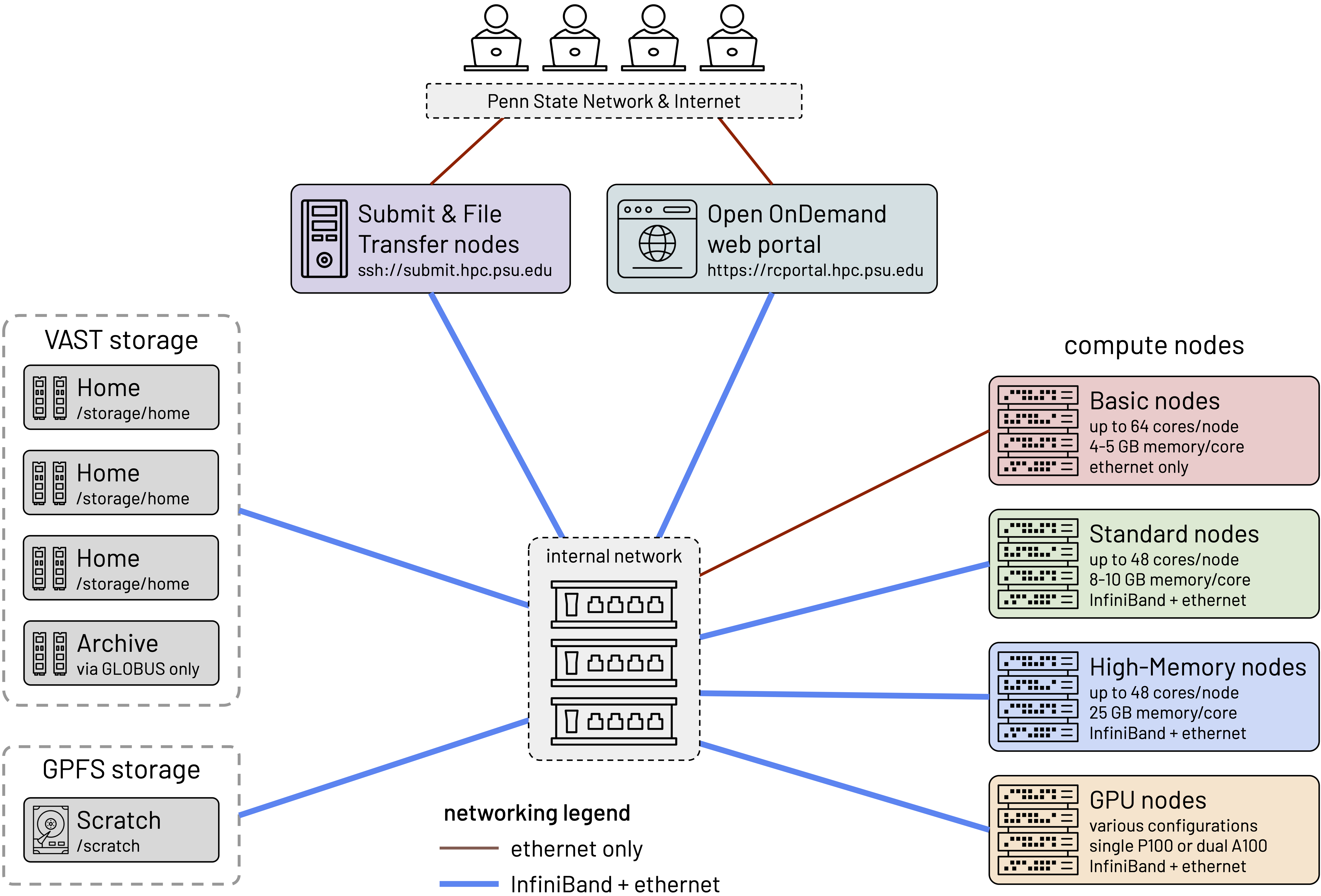

Collab consists of different parts, connected together by networks:

  • users of the cluster, who connect to either
  • submit nodes, to prepare and submit jobs, or
  • the Portal, for interactive computing;
  • file storage for user files, plus
  • scratch storage for temporary files; and
  • compute nodes, of several different types.

architecture

Compute Hardware

A cluster consists of multiple nodes connected to one or more central filesystems. A node is basically a single computer, roughly comparable to a powerful desktop machine.

Some nodes are networked together with fast connections (Infiniband) that enable efficient communication between nodes, allowing large jobs to run in parallel on multiple nodes.

Finally, some nodes include GPUs (graphical processing units), which can accelerate certain compute jobs.

Available Hardware on RC

Resource Count Cores Memory (GB) CPU CPU Family GPU Network
Basic 120
240		 64
24		 256
128		 Gold 6430
E5-2650v4		 sapphirerapids
broadwell		 Ethernet
Standard 140
156
233		 48
48
24		 512
384
256		 Gold 6342
Gold 6248R
E5-2680v3		 icelake
cascadelake
haswell		 Infiniband
GPU P100 8
68		 28 512
256		 E5-2680v4 broadwell NVIDIA P100 12GB Infiniband
Ethernet
GPU A100 38 48 384 Gold 6248R cascadelake NVIDIA A100 40GB Infiniband
GPU V100 2 24 512 E5-2680v3 haswell NVIDIA V100 32GB Ethernet
GPU V100 quad 2 24 512 Gold 6132 skylake (4x) NVIDIA V100 32GB Ethernet
GPU A40 12 36 1024 Gold 6354 icelake NVIDIA A40 48GB Ethernet
High Memory 25
2		 48
56		 1024 Gold 6342
E7-4830v4		 icelake
broadwell		 Infiniband
AMD Genoa 36 64 384 EPYC 9354 genoa Infiniband

Available Hardware on RR

Resource Count Cores Memory (GB) CPU GPU Network
Standard 12
48		 48
24		 384
256		 Gold 6248R
E5-2680v3		 Infiniband
GPU P100 quad 3 28 256 E5-2680v4 (4x) NVIDIA P100 12GB Ethernet
